PLEASE READ CAREFULLY THIS DESCRIPTION, IS FOR THE MACHINE SAFETY AND BEST PERFORMANCE

-Blackwork Edition specific for fill solid black with magnum 15 to 29
-Improved mechanism, little bit faster and no more problems with any type of Grommets
-DO NOT BEND THE NEEDLES BAR, JUST BEND A VERY LITTLE BIT THE NEEDLES GROUP
-Compact and well balanced on your hand
-Aluminium frame + Iron side plates, just 142 gr. weight
-6 volts motor
-Recommended to use at 4.5-5.5 volts
-Medium fixed 3.4 mm stroke with hard punch
-No setup, No tuning, No adjustment, just Plug and Play
-Heavy Hitting Screw on the bar, extra punch compare the regular version
-Hard Green O-Ring to reduce the punch give , better for fill black
-Clipcord connection, positive pole RED down position
-Can run Regular Needles and Cartridges

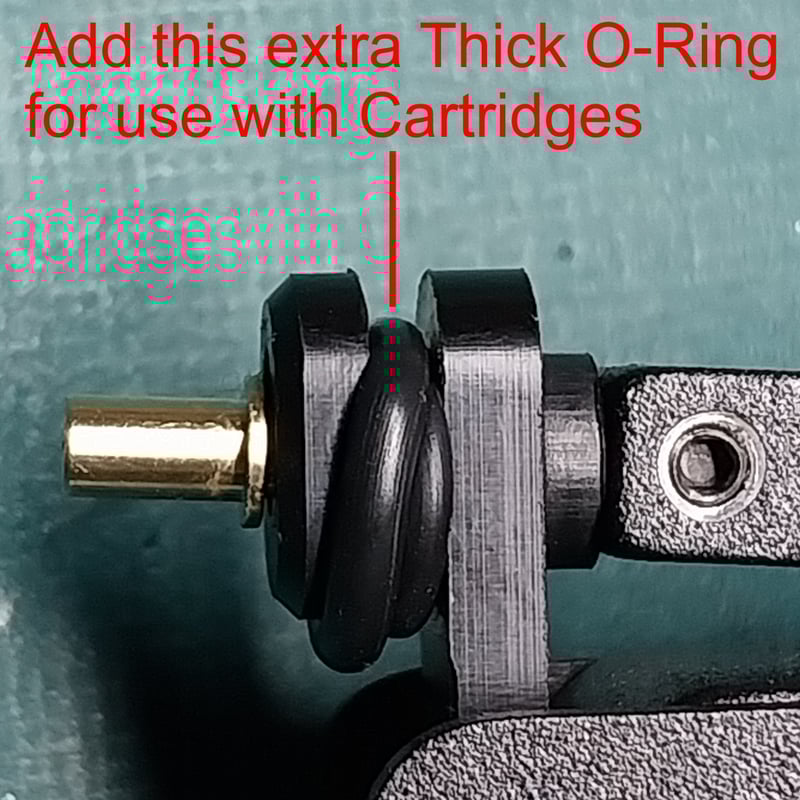

-For use with Cartridges, please add the Extra Thick O-ring that come with the machine to the bar mechanism, check the last pic for understand
-NEVER RUN HIGHER than 6 volts and lower than 4 volts, for the motor safety
-NEVER RUN ON POWER SUPPLY OR BATTERY PACK WITH JUMP-START MODE ON, PLEASE DEACTIVATE THIS OPTION OR GONNA BURN THE MOTOR EASY
-1.5 mm hexagon key and extra O-rings included

-DO NOT TRY TO REGULATE THE HITTING SCREW, IT COME SETUP IN THE PERFECT POSITION, AFTER VARIOUS HOURS OF WORK THE SCREW CAN WEAR OUT A BIT AND LOOSE LITTLE BIT THE PUNCH, ONLY AT THIS POINT U CAN ADJUST THE HITTING SCREW IN THIS WAY:

1- GRAB THE HEXAGON KEY COME WITH THE MACHINE AND RELEASE A BIT THE TINY SIDE SCREW ON THE BAR
2- TURN CLOCKWISE THE HITTING SCREW 1/5 OF TURN
3- CLOSE AGAIN VERY CAREFUL THE SIDE TINY SCREW

-IF YOU INTEND TO USE A "BATTERY PACK" PLEASE BE SURE THE ONE YOU CHOOSE CAN START FROM "4 VOLTS" AND HAVE THE OPTION TO REMOVE "THE JUMP-START", DO NOT USE A BATTERY PACK WITHOUT THOSE TECHNICAL FEATURES, OR YOUR GONNA BURN THE MOTOR EASY

-NEVER SPRAY ANY GERMICIDAL DIRECT ON THE MACHINE, TO CLEAN SPRAY ON PAPER TOWEL AND WIPE GENTLE THE MACHINE, ALL LIQUID THAT CREATE CORROSION GONNA REDUCE THE LIFE OF ALL THE MECHANICAL PARTS INCLUDED BEARINGS AND MOTOR

shipped from GERMANY

PLEASE CHECK THE VIDEO ABOUT THIS SPECIFIC MACHINE ON MY YOUTUBE CHANNEL

https://www.youtube.com/watch?v=8k_xVw51UiA&t=7s
