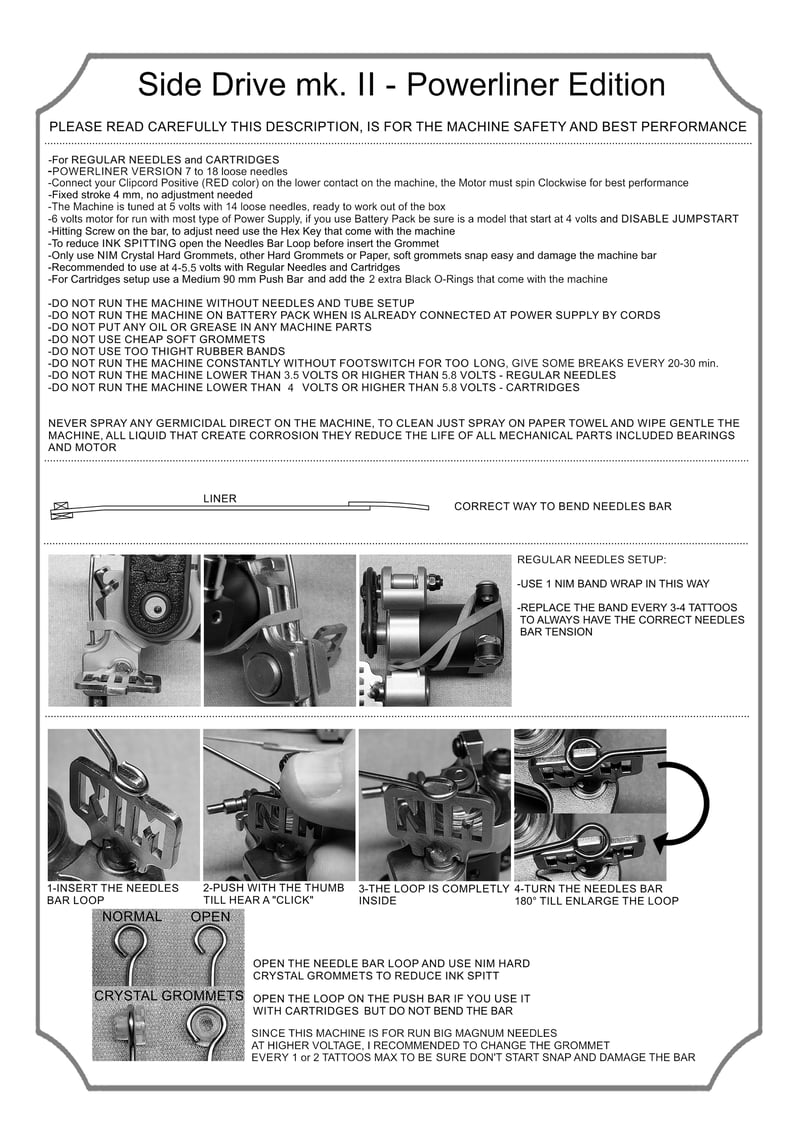

PLEASE READ CAREFULLY THIS DESCRIPTION, IS FOR THE MACHINE SAFETY AND BEST PERFORMANCE

-SPECIAL VERSION SPECIFIC FOR POWERLINER 7-18 Loose needles
-FOR REGULAR NEEDLES AND CARTRIDGES
-EXTREMELY TINY AND POWERFUL
-Second generation of my Side Drive Hybrid Rotary
-Brass and Bar made of solid Brass, help absorb vibrations and stabilize the machine + Motor cover made of Aluminium
-148 gr. weight
-6 volts motor
-Large Eccentric wheel to increase Torque and Power
-Clipcord + front RCA connection, for use any type of cord and Battery pack
-Clipcord Positive pole always on lower position, check the RED color on the contacts, motor spin Clockwise for best performance
-Wise Lock Screw with a helpful tool integrated to Enlarge Needles Bar Loop and reduce Ink Spitting problems
-My Special Shaft with Flex System to connect Frame and Bar, create a solid fast hit very easy to fill black
-Fixed stroke 4 mm, no adjustment needed

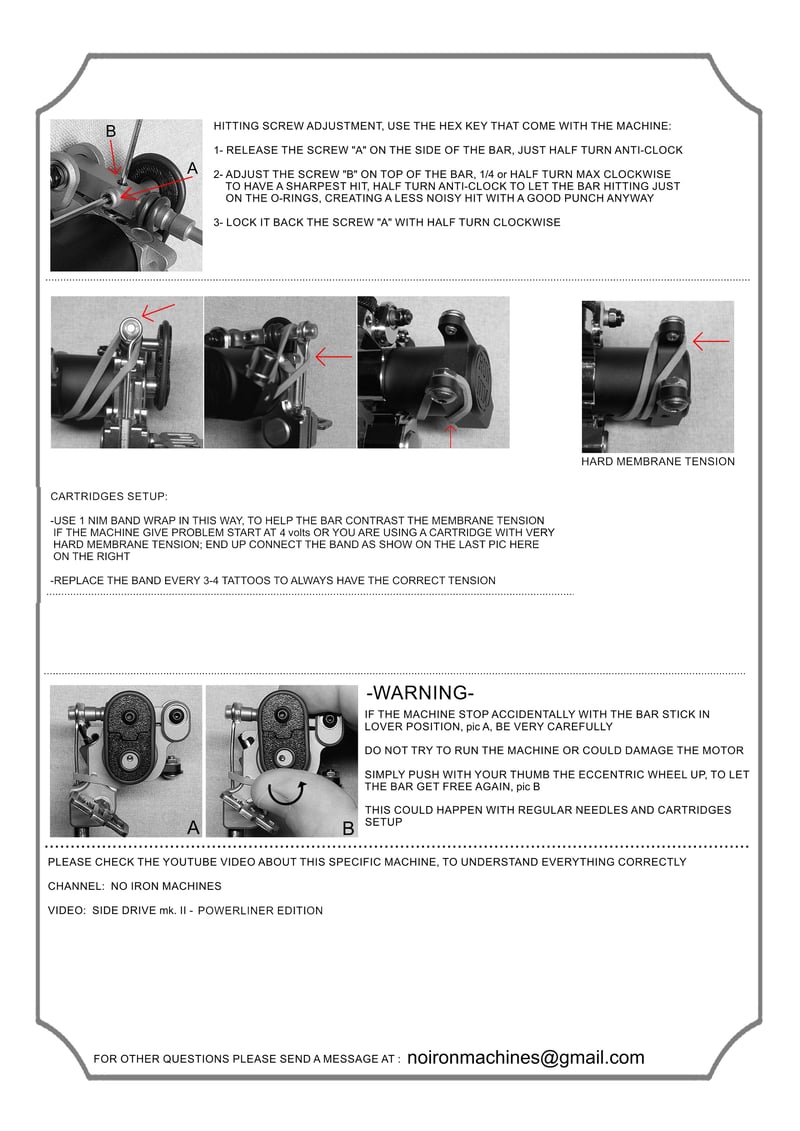

-Hitting Screw on the bar to create a sharp Hit, if you don't want the machine too noisy just Unscrew it a bit and the bar gonna hit directly on the 2 O-rings with lot of Punch anyway
-Recommended to use at 4.5-5.5 volts
-FOR CARTRIDGES PLEASE ALWAYS ADD THE RUBBER BAND AS SHOW ON THE LAST PIC and use a Medium 90 mm Push Bar
-It come with 1 extra Large O-ring for the Flex System, 1 hexagon key 1.5 mm for adjust the Hitting Screw, a bunch of NIM Rubber Bands and Crystal Hard Grommets, Warranty Certificate and Instructions Paper

FOR THE BEST OUTLINE use our LINING BLACK from www.thesolidink.com , your blackest lines, guaranteed

-ONLY USE NIM CRYSTAL GROMMETS, OTHER BRAND HARD GROMMETS OR PAPER, CHEAP SOFT GROMMETS SNAP EASY

-DO NOT RUN THE MACHINE WITHOUT NEEDLES AND TUBE SETUP

-DO NOT RUN THE MACHINE LOWER THAN 3.5 VOLTS OR HIGHER THAN 5.8 VOLTS, WITH REGULAR NEEDLES

-DO NOT RUN THE MACHINE LOWER THAN 4 VOLTS OR HIGHER THAN 5.8 VOLTS, WITH CARTRIDGES

-IF YOU USING A BATTERY PACK BE SURE TO GET A MODEL THAT START FROM 4 VOLTS AND NEVER ENABLE THE JUMPSTART OPTION, FOR THE MOTOR SAFETY

-DO NOT PUT OIL, GREASE OR ANY OTHER LUBRICANTS IN ANY MACHINE PARTS

-NEVER SPRAY ANY GERMICIDAL DIRECT ON THE MACHINE, TO CLEAN SPRAY ON PAPER TOWEL AND WIPE GENTLE THE MACHINE, ALL LIQUID THAT CREATE CORROSION GONNA REDUCE THE LIFE OF ALL THE MECHANICAL PARTS INCLUDED BEARINGS AND MOTOR

-PLEASE WATCH THIS VIDEO ABOUT THE MACHINE IN MY YOUTUBE CHANNEL

shipped from GERMANY
